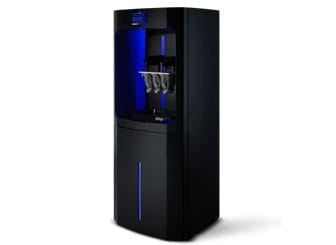

Nexa3D NXE 400 Photoplastic 3D Printer
The Nexa3D NXE 400 has an unprecedented 16L build volume measuring 10.8 in x 6.3 in x 15.7 in (27.5 cm x 16 cm x 40 cm), intelligent optimization, and Nexa3D’s revolutionary patented Lubricant Sublayer Photocuring (LSPc) technology, the NXE 400 photopolymer 3D printer is perfect for any application.
2.5x Larger Build Volume
Features 2.5 times greater build volume (16L) compared to currently available technologies, allowing for much larger parts, higher part throughput, and ultimately lower part cost, all with higher-resolution pixels (76 µm) and isotropic prints.
6.5x Greater Print Speed
Patented LSPc process enables production speeds that are up to 6.5x faster than other production systems. Uniform exposure and process control also ensure production build speeds at the highest quality levels.
Broad Material Selection
Offering the widest range of materials to meet all your performance needs, including PP-Like, ABS-Like, and engineering-grade functional materials. Additionally, there are specialty materials tailored specifically for the production of precision investment casting patterns.
Nexa3D NXE 400 Specifications
| Build Volume (xyz) | 275 x 155 x 400mm (10.8 x 6.1 x 15.7 inch) |
|---|---|
| Max Resolution | 4K (3840 x 2160) |
| Pixel Pitch | 76.5 µm (0.0030 in) |
| Wavelength | 405 nm |
| Build Materials | UV Curable Plastics: xGPP-Blue, xGPP-Transparent, xGPP-Grey, xABS-HT-Orange, 3843-ABS-Black, xCE-Black, xMED, xCAST |
| Material Packaging | 5kg jerry can |
| Operating Environment | |
| Air Temperature | 20-25˚C (60-80˚F) |
| Humidity | RH below 70% |
| Electrical | NA Version : 100-120 VAC, 50/60 Hz, Single Phase, 8A (NEMA 15-5R) EU Version: 210-230 VAC, 50/60 Hz, Single Phase, 4A (CEE 7/7) |
| Dimensions (WxDxH) | |
| 3D Printer crated | 990 x 990 x 1905mm (39 x 39 x 75 inch) |
| 3D Printer uncrated | 710 x 710 x 1675 mm (28 x 28 x 66 inch) |
| Weight | |
|---|---|
| 3D Printer crated | 250 kg (550lb) |
| 3D Printer uncrated | 160kg (350lb) |
| Materialise MagicsPrint for Nexa3D Software | Full featured toolset including auto orientation and nesting, auto support generation, mesh repair wizard, and part editing |
| NexaX v1 Software | Easy build processing and Remote Printer Management: submission and queues, job statisitics. |
| Connectivity | GigaBit Ethernet RJ-45 & WiFi Interface |
| Client Hardware Recommendation | – 3 GHz multiple core processor with 16+ GB RAM – NVIDEA GTX 1060 or AMD Radeon RX 480 or better graphics with 4+ GB RAM – 3 GB available HDD space, additional 10GB for files / cache |
| Client Operating System | Windows 10, 64bit |
| Input Data File Formats Supported | .stl, .3mf |
| Client Operating System | Ships with basic part finishing tools accessory kit. – Max build requires wash basin & cure chamber with 300 x 180 x 480mm (12 x 7 x 19 in) capacity – Requires UV curing unit capable of > 2mW/cm2 and 60°C (ideal 20mW/cm2 and up to 120°C) |
2.5x Larger Build Volume
The NXE 400 photo plastic 3D printer features more than double the build volume compared to currently available technologies, allowing for much larger parts, higher part throughput, and ultimately lower part cost, all with the higher-resolution pixels (75 µm) and isotropic prints.
Manufacturing Ready + Modular Design
In addition to our highly reliable LSPc technology, the NXE 400 photoplastic 3D printer is crafted to be completely modular in design for easily interchangeable parts and technology upgrades, eliminating hardware obsolescence.
Next-Gen Software + Predictive Service
Nexa3D’s internally developed intelligent software connects our hardware and materials together into a powerful, user-friendly system while providing a new era of predictive and prescriptive service. It’s as simple as pressing CRTL+P.

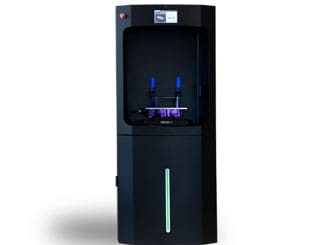

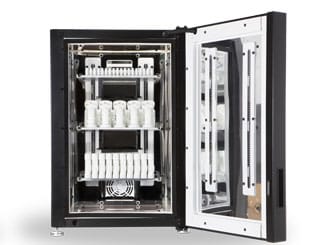

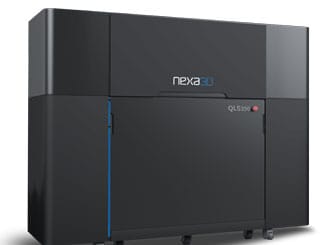

Nexa3D 3D Printers
