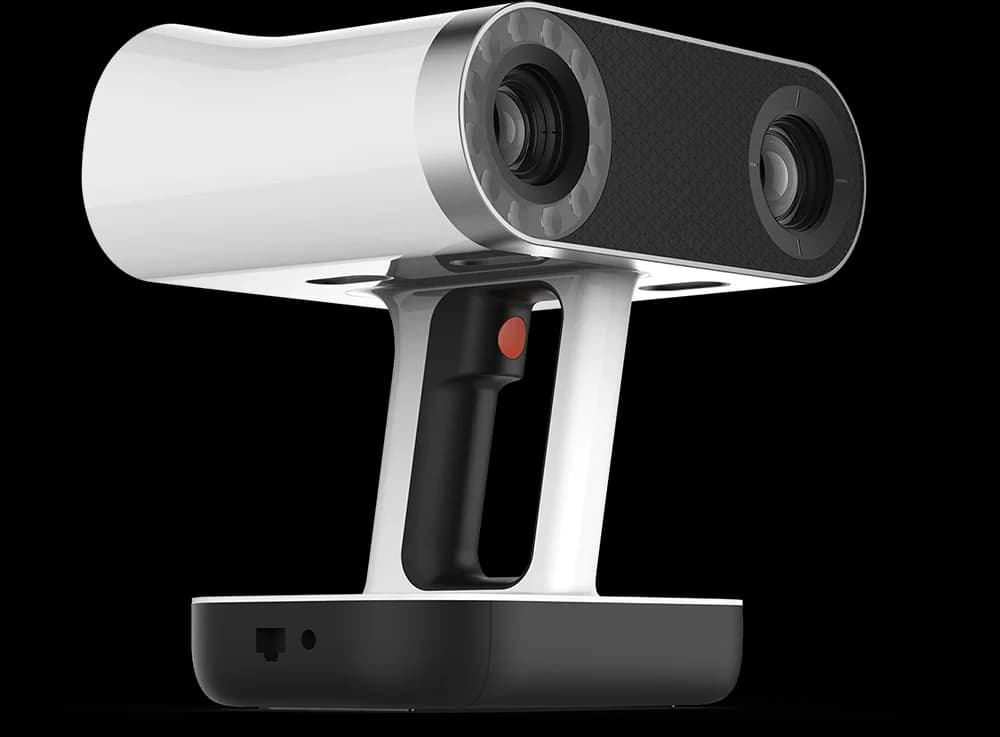

Artec Leo is a powerful wireless 3D scanner with onboard processing, real-time display, and unmatched scanning freedom.
The most mobile 3D scanner
With a built-in battery and Wi-Fi, Artec Leo lets you scan freely—no wires, no limits.
Touchscreen and simple interface
View and edit your scans on the built-in touchscreen. Connect wirelessly to a second screen for easy collaboration.
9 DoF inertial system
Accelerometer, gyro, and compass let Leo track its position and orientation with high precision.
Advanced texture mapping
A custom optical system combines 3D and color cameras through one lens for perfect texture-to-geometry mapping.
Project size optimizer
Leo auto-pauses when scanning the same area, saving time, memory, and processing power.
Capture anything, anywhere – no cables, no limits.
Artec Leo is a smart professional 3D scanner for a next-generation user experience
Artec Leo is trusted by engineers, healthcare professionals, researchers, and digital artists worldwide. Whether you’re scanning large mechanical parts or delicate organic forms, Leo delivers clean, detailed scans every time.
Who Is Artec Leo For?
- Manufacturing & Engineering – reverse engineering, quality inspection
- Healthcare – orthotics, prosthetics, patient modeling
- Art & Heritage – preservation, 3D archiving
- Education & Research – hands-on learning and digital modeling
- Design & Media – 3D assets, VFX, prototyping
Ready to Scan Smarter with Artec Leo?
Talk to a 3D scanning expert today to see if Artec Leo is right for your workflow.
Technical Specification
| Working distance | 0.35-1.2 m |
| Volume capture zone | 160,000 cm3 |
| Linear field of view, HxW @ closest range | 244 x 142 mm |
| Linear field of view, HxW @ furthest range | 843 x 488 mm |
| Angular field of view, HxW | 38.5 x 23° |
| 3D resolution, up to | 0.2 mm |
| 3D point accuracy, up to | 0.1 mm + 0.3 mm/m |
| 3D accuracy over distance, up to | 18.3 kg | 40.4 lb |
| Ability to capture texture | 2.3 mp |
| Colours | 24 bpp |
| 3D reconstruction rate for real-time fusion, up to | 22 fps |
| 3D reconstruction rate for 3D video streaming, up to | 80 fps |
| Data acquisition speed, up to | 35 mln points / sec. |
| 3D Exposure time | 0.0002 s |
| 2D Exposure time | 0.0002 s |
| 3D light source | VCSEL |
| 2D light source | White 12 LED array |
| Multi core processing | Embedded processors: NVIDIA® Jetson™ TX1 Quad-core ARM® Cortex®-A57 MPCore Processor NVIDIA Maxwell™ 1 TFLOPS GPU with 256 NVIDIA® CUDA® Cores |
| Position sensors | Built-in 9 DoF inertial system |
| Display / touchscreen | Integrated 5.5″ half HD, CTP. Optional Wi-Fi / Ethernet video streaming to external device |
| Interface | Wi-Fi, Ethernet, SD card |
| Internal hard drive | 256 GB SSD |
| Supported OS | Scanning: No computer required Post-processing: Windows 7, 8, 10 x 64 |
| Recommended computer requirements | Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+ |
| Minimum computer requirements | HD: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 2 GB VRAM SD: Intel Core i5, i7 or i9 and 12 GB RAM, GPU with 2 GB VRAM |
| Output formats | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| Output format for measurements | CSV, DXF, XML |
| Power source | In-built exchangeable battery, optional mains power |
| Dimensions, HxDxW | 231 × 162 × 230 mm |
| Weight | 2.6 kg / 5.7 lb |
Talk to an Artec 3D Scanning Specialist
Our team has unmatched practical experience to help you find the perfect solution.
Talk to an expert today 03 7018 2121.
Frequently Asked Questions
Artec Leo is the only professional handheld 3D scanner with onboard processing, real-time display, and full wireless functionality—making scanning fast, flexible, and intuitive.
Yes! Artec Leo features a built-in battery, onboard computer, and Wi-Fi connectivity, so you can scan without needing a computer, power cable, or tethered connection.
Leo offers up to 0.1 mm accuracy and up to 0.2 mm resolution, making it suitable for professional-grade applications including manufacturing, healthcare, and reverse engineering.
Absolutely. Artec Leo is designed for a wide object size range—from medium items like faces and body parts to large objects such as vehicles, machinery, or furniture.
No. Leo processes scans onboard and displays them in real-time on its built-in touchscreen. You can save files to the SD card or transfer them wirelessly to your workstation.
Artec Leo works seamlessly with Artec Studio, Artec’s industry-leading software for scan processing, post-editing, mesh export, and more.
Yes! Its intuitive touchscreen interface and smart scanning tools make it easy for beginners to start scanning right away, with minimal training.
You can export scans in common 3D formats such as OBJ, STL, PLY, WRL, and more, compatible with most 3D software platforms.
Yes. Leo features a unique optical system that blends color and geometry through one lens, providing high-quality, full-color 3D models.
