PluraView 4K 3D Monitor
The PluraView 4K visualizes on a screen diagonal of 28″ 3840 x 2160 pixels resolution as the top model of the PluraView series and is available in premium housing with integrated DisplayPort 1.2 mirror card.
3D PluraView System – Beam-splitter technology
How the passive 3D stereo system works
The 3D PluraView has consistently evolved from Planar’s successful beam-splitter technology, both in function and technology, as well as in design, quality and user ergonomics.
- Established, mature beam-splitter technology with semi-transparent mirror
- Passive polarized filter glasses without flicker effect
- Two professional FHD, 2.5K or 4K monitors
- Highest component quality with a solid housing and stand – made in Germany
3D PluraView Monitor – Specifications
| 27” 2.5K | 28” 4K | |
|---|---|---|
| Display | 27” (686 mm) Screen Size 2x 2560 x 1440 Resolution ( 3.7 MP) 16.7 Million Colours (8-Bit) 350 cd/m2 Brightness |
28” (711 mm) Screen Size 2x 3840 x 2160 Resolution (8.3 MP) 1.073 Billion Colours (10-Bit*) 300 cd/m2 Brightness |
| LED BackLight-Technology 1 ms Response Time 170 °/160 ° Viewing Angle (H/V) BlackTuner for lightening of the shades |
||
| Contrast Ratio: 80 000 000 : 1 ACR | Contrast Ratio: 12 000 000 : 1 ACR | |
| Frame rate | 60 Hz | 60 Hz |
| 3D-Characteristics | 210 cd/m2 Brightness with glasses 2560 x 1440 per Eye Resolution |
180 cd/m2 Brightness with glasses 3840 x 2160 per Eye Resolution |
| Linear Polarization 45°/135° Beamsplitter: half transparency mirror |
||
| 3D-Formats | Quad Buffered OpenGL, Side-by-Side, Top-Bottom, Quad Buffered DirectX | |
| Operating Systems | Windows / Linux / macOS-Compatibility, Windows-10 Certification | |
| Power Consumption | Power Consumption 75W typical; max. 1W in Power Management Mode Annual Power Consumption 131 kWh / year |
Power Consumption 98W typical; max. 1W in Power Management Mode Annual Power Consumption 173 kWh / year |
| Power Management VESA DPMS™, Energy Star 6.0 Efficiency Class B |
||
| Weight | 25 kg, set weight with stand | 26 kg, set weight with stand |

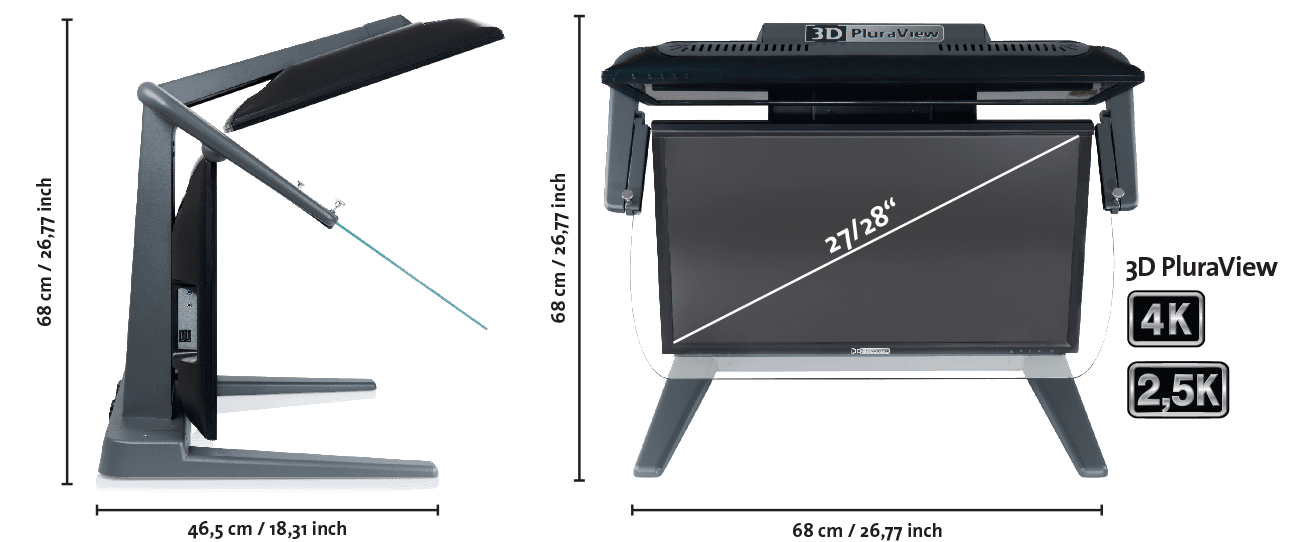

| Measurements | 80 x 68 x 54 cm (WxHxD) | 80 x 68 x 54 cm (WxHxD) |
| Interfaces | 2x DisplayPort 1.2 cable 3m 2x USB 2.0 |
2x DisplayPort 1.2 cable 3m 2x USB 3.0 |
| 1 x main plug AC 100 – 240 V, 50 / 60 Hz with power switch and fuse 3.15 A | ||
| Audio | Integrated Speaker 2 x 2.5 W | Integrated Speaker 2 x 3 W |
| Design | Diamond Dark Aluminum Construction Integrated Electronics Adjustable Stand Made in Germany |
|
| Technical Notes | 2x DisplayPort 1.1 output to the graphics card is required AMD FreeSync support |
2x DisplayPort 1.2 output on the graphics card is required for 60Hz, with DP 1.1 is 30Hz operation possible. AMD FreeSync support |
| Graphics Card Requirements |
Any QuadBuffer capable NVIDIA Quadro and AMD FirePRO / RadeonPRO cards that have at least 2x DisplayPort 1.1 monitor outputs. It is recommended to use an additional side view monitor for the 3D PluraView, which is adapted to the polarization of the stereo system. * The feature 10Bit color depth with QuadBuffer 3D stereo only works with AMD graphics cards. |
|
| Warranty | 1 Year Warranty without exclusion, with carepack extended up to 5 Years | |
