Delsys Trigno Research+

With built-in WiFi and Bluetooth capabilities, the dual-purpose Delsys Trigno Research+ system enables you to record EMG + movement data from anywhere and at any time. Leveraging these abilities makes the system the optimal indoor/outdoor tool for both advanced research and mobile clinical conditions.

Trigno Wireless System

A high-performing device designed to make EMG signal detection reliable and easy.
The system is capable of streaming data digitally into EMGworks®, third-party software, or via analog outputs for integration with motion capture and other third-party data acquisition systems. Full triggering features further expand integration options for additional measurement technologies.

Research Mode

Wireless Communication: Proprietary RF wireless protocol
Stream data digitally into EMGworks® or via analog channels for integration
Mix and match from the entire Trigno™ EMG & Additional Sensors
Integrate with a third-party measurement technologies and synchronize data recording

Mobile Mode

Wireless Communication: Bluetooth
Record and analyze data with Mobile EMG Suite
Compatible with Trigno™ Avanti, Quattro and other latest-gen Trigno™ sensors.

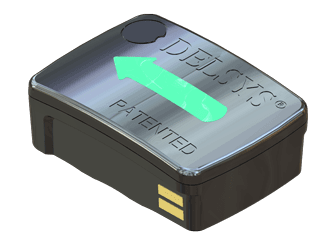

Trigno Avanti Sensor

Advancing the Trigno™ Platform for years to come

Our latest generation wireless sensor combines patented EMG with increased IMU performance, while supporting both Research and Mobile data collection modes.

Trigno Avanti Sensor

Button-less Operation
Improved RF Performance
On-board IMU
LED Status indicators
Selectable EMG Bandwidth Settings
On-board Signal Processing

Trigno Quattro Sensor

Advanced, 4-channel EMG + IMU sensor for adaptable muscle tracking

The Trigno™ Quattro Sensor combines four of the smallest EMG sensing heads on the market with an IMU to track human movement in both research labs and mobile environments.

Trigno Quattro Sensor

Sleek miniature heads ideal for use in:

HMIs, Prosthetics, Exoskeletal Systems, Pediatrics, Speech Therapy

Isolate and measure several muscles in areas of high traffic.

4 channels of EMG + IMU
Available for Research+ and Mobile systems
Wi-Fi and Bluetooth Capability
Transmission range of up to 40 meters

Trigno EMG & Additional Sensors

Combine. Collect. Analyze.

Specifically designed to complement EMG studies, the Trigno™ product line offers users a full set of physiological and biomechanical monitoring tools to simplify complex research and provide more useful data.

Trigno EMG & Additional Sensors

System Requirements

Windows PC

EMGworks 4.4 or later
Windows 7, 8.1, 10
One USB 2.0 port
At least 2.0 GHz processor clock speed
At least 2 GB system memory
1280×1024 (SXGA) display resolution or better
50 GB hard disk storage (minimum)

Android Device

Android V 6 (Marshmallow) operating system
BLE 4.2 support
RAM 1GB minimum
Storage 8 GB minimum
Screen Resolution 2048×1536 (recommended)
Recommended Tablet: Samsung Galaxy Tab S2 (SM-T713NZKEXAR)
8-inch screen, 32 GB, WI-FI

Specifications

RF Frequency Band
2400-2483 MHz (ISM band)

Dimension
27 x 37 x 13 mm

Mass
14 g

Temperature Range
5 – 45 degrees Celsius

EMG Signal Input Range
11mV / 22mV r.t.i.

EMG Signal Bandwidth
20-450 Hz / 10-850 Hz

EMG Contact Dimensions
5×1 mm

Contact Material
99.99% silver

Accelerometer Range
±2g, ±4g, ±8g, ±16g

Accelerometer Bandwidth
24 Hz – 470Hz (configurable in software)

Gyroscope Range
±250 dps, ±500 dps. ±1000dps, ±2000dps

Gyroscope Bandwidth
24Hz – 360 Hz (configurable in software)

Magnetometer Range
±4900 uT

Magnetometer Bandwidth
50 Hz

Inter-Sensor Delay
< 1 sample period (Base Station only)

Intra-Channel Delay
< 1-2 sample period

Analog Output Range
± 5 V (Base Station only)

Analog Output Bandwidth (Ch. 1-16)
DC-500 Hz (Base Station Only

Analog Output Bandwidth (Ch. 17-64)
DC-50 Hz (Base Station Only)

Analog Output Group Delay (Ch. 1-16)
48 ms (Base Station Only)

Analog Output Group Delay (Ch. 17-64)
96 ms (Base Station Only)
