Freedspace OptiTrack Slim 3U Motion Capture Camera

Home / Tracklab / Products / Tracklab Brands / OptiTrack Optical Motion Capture Systems / OptiTrack Slim 3U Motion Capture Camera

The Slim 3U is a board level camera designed for OEM integration in computer vision, multi-touch screens/surfaces, and custom tracking applications. It is fully customizable, with a variety of optional components and features. Software support includes the free Camera SDK, which provides complete control and access to camera settings.

In Depth

Fast, precise, and efficient capture

The Slim 3U is capable of capturing fast moving objects with its global shutter imager and 120 FPS capture speed. By maximizing its 640 × 480 VGA resolution through advanced image processing algorithms, the Slim 3U can also track objects down to sub-millimeter movements with repeatable accuracy.

Components a la carte

Build your SLIM piece by piece, optimizing it as you see fit. Custom building your camera gives you the flexibility to create a hardware solution that is tailored for your own application, satisfies your unique spec, and maximizes cost-efficiency. Optional components include:

Aluminum case with CS lens mount and 1/4″-20 tripod thread
Filter options (800nm pass filter, Filter Switcher, empty filter plug)
Lens mount adapter (CS to M12, CS to C—only available with SLIM case)
M12 lens (3.5mm, 4.5mm, 5.5mm)
Input/output (Sync break-out cable, Micro 9-pin connector)

Camera control

With OptiTrack’s Camera SDK you can access a variety of Slim 3U settings for greater control over what your cameras capture and what information they report to the software application. Available settings include:

Image processing type
Frame rate
Exposure
Threshold
Filter switching
And more…

On-camera image processing

In addition to providing raw and MJPEG grayscale video, SLIM cameras can process and threshold data on-board, creating a variety of video modes deliverable to your PC, including:

Precision grayscale – Most precise object detection. Sends grayscale object information to the PC for calculation of location, size, and roundness using our most precise processing methods.Provides greater accuracy than other modes, but consumes more CPU resources and USB bandwidth.
Segment – Balanced object detection. Similar to Precision Grayscale, Segment processing streamlines object information for more CPU-efficient marker detection. Provides a balance between precision and USB bandwidth use.
Object – The most CPU-efficient object detection. Provides more efficient USB bandwidth utilization, but delivers less information to the PC than other modes.
MJPEG-compressed grayscale – Full resolution grayscale frames, compressed on-camera for highly scalable scene video capabilities.
Raw grayscale – Full resolution, uncompressed grayscale.

MJPEG compression

Transmit MJPEG-compressed grayscale video at full frame rate and full resolution with 1/10th of the USB bandwidth of uncompressed video. MJPEG compression enables multiple cameras to stream video to the same PC, offering scalability superior to raw grayscale video.

Camera Synchronization

Up to 24 SLIM cameras per PC can synchronize their shutters to expose at exactly the same time. Each synced camera can operate in different video modes with individually customized camera settings. Utilize OptiHubs in your sync chain to enable external syncing capabilities.

Filter Switcher technology
Upgrade any Slim 3U camera with the same Filter Switcher technology found in Flex 3 cameras, enabling visible spectrum video in addition to standard IR imaging. FS-enabled cameras are equipped with a solenoid that can be controlled in-software to extend or retract the infrared lens filter. OptiTrack’s user-changeable, polychromatic M12 lenses are specially designed to remain in focus in both the visible and infrared spectrums.

OEM integration

Incorporate Slim 3U cameras into OEM tracking or computer vision applications via the free Camera SDK.

Tech Specs

Camera Board

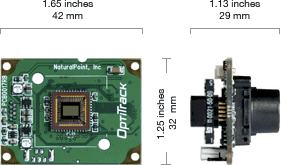

Width: 1.65 inches (42 mm)
Height: 1.25 inches (32 mm)
Depth:
- 0.59 inches (15 mm)
- 1.13 inches (29 mm) with Lens Mount
Weight: 0.18 ounces (5 grams)
Mounting: 1/4”-20 tripod thread
LED status indicator

Image Sensors (×2)

Imager Size: 4.5 mm × 2.88 mm
Pixel Size: 6 µm × 6 µm
Imager Resolution: 640 × 480 (VGA, windowed from 752 × 480)
Frame Rate: 30, 60, 120 FPS
- Frame decimation (transmit every Nth frame)
Spatial decimation: 320 × 240, 160 × 120
Latency: 8.33 ms
Shutter Type: Global
Shutter Speed:
- Default: 1/1000th of a sec. (1 ms)
- Minimum: 1/50,000th of a sec. (20 µs)

Lens & Filter

M12 lens options:
- 3.5 mm F#1.6
  - Horizontal FOV: 58°
  - Vertical FOV: 45°
- 4.5 mm F#1.6
  - Horizontal FOV: 46°
  - Vertical FOV: 35°
Lens mount options:
- M12 (board level & case w/ adapter)
- CS (case only)
- C (case only w/ adapter)
Filter options:
- 800 nm IR long pass filter
- 800 nm IR long pass filter w/ Filter Switcher
- Unfiltered

Camera Case

Width: 1.90 inches (48 mm)
Height: 1.47 inches (37 mm)
Depth: 1.05 inches (27 mm)
Weight: 1.23 ounces (35 grams)

Image Processing Types

Object
Segment
Precision Grayscale
MJPEG Grayscale
RAW Grayscale

Input/Output & Power

Data: USB 2.0 (Mini B Female)
Camera Sync: USB 2.0
Power: Up To 500ma (nominally 140mA)
Sync breakout cable (sold separately)
Micro 9-pin connector

In the Box

1 Slim 3U Camera Part number: SL-V120
1 Quick Start Guide

Download Spec Sheet

Want To Know More?
